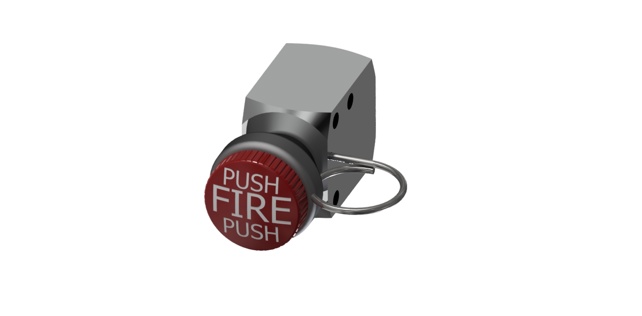

The Manual Actuator is used to manually release
nitrogen gas pressure from a Nitrogen Cylinder to
pneumatically activate a control head through a
Pneumatic Actuation Network. The body of the
Manual Actuator is chrome plated brass and
contains a stainless steel puncture point that is
connected to a palm button and locked in place by a
stainless steel ring pin. It also contains a 1/4” NPT
female port to connect to the Pneumatic Actuation
Network. The exposed shaft of the stem is shielded
from the elements by a rubber dust boot. The
Manual Actuator is supplied with two 1/4”-20
stainless steel cap screws (P/N 10573-P012) for
securing the assembly to an Actuator Bracket.
