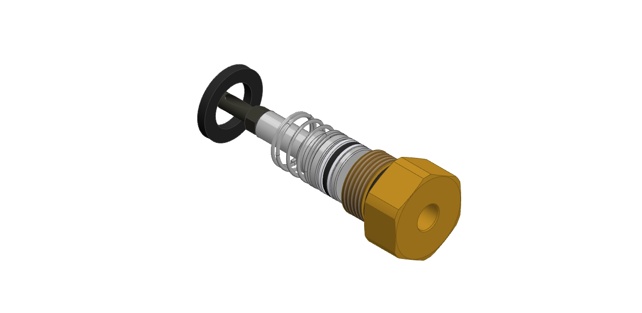

The Electric Nitrogen Actuator is used to release
nitrogen gas pressure from a Nitrogen Cylinder to
pneumatically activate a control head through a
Pneumatic Actuation Network. The body of the
Electric Nitrogen Actuator is constructed of chrome
plated brass and contains a stainless steel puncture
point and a 1/4” NPT female port to connect to the
Pneumatic Actuation Network. A brass adapter is
threaded into the top that accepts a Linear Actuator
(P/N 22579 or 20500). The Electric Nitrogen Actuator
is supplied with two 1/4”-20 stainless steel cap
screws (P/N 10573-P012) for securing the assembly
to an Actuator Bracket.
