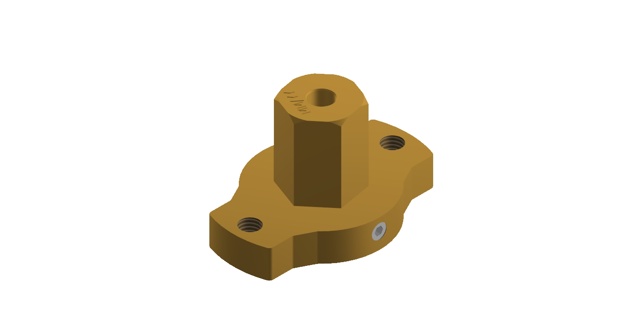

The Electric Control Head is used in all
electrically only actuated Amerex Dry Chemical
System and ICS installations applications. This device is
constructed of machined brass and bolts directly
to the top of the Agent Cylinder Valve. The body
of the Electric Control Head is threaded to
accept a Linear Actuator (P/N 22579 or 20500).
The base retains the actuator piston and locking
ring. The Linear Actuator, when activated, will
force the piston inside the Electric Control Head
down to depress the Agent Cylinder Valve stem,
releasing the corresponding Agent.
