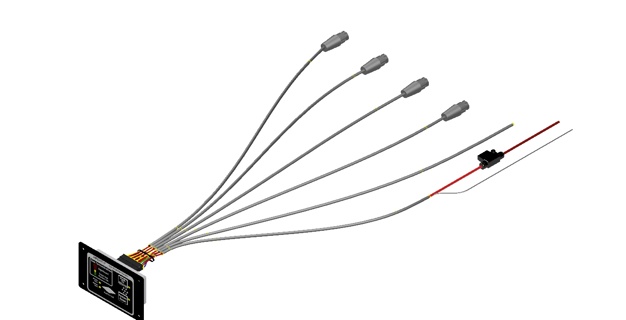

The AMGaDS IV Wiring Harness (not included with Control Panel) is used to connect the Control Panel to the Gas Sensor Cables, input power, and any auxiliary output devices. One end features a single female connector which mates with the Control Panel, and the other
end features (4) Gas Sensor leads with locking connectors, a power input lead, and an auxiliary input/output lead. Gas Sensor leads are labeled according to their associated zone.
The power input lead (2 wire) and auxiliary input/output lead (6 wire) are provided blunt cut
and un-terminated for a variety of connection options. Wiring connections for these leads are
provided by the system installer for the specific purpose intended.
